WELL TEMPERED LAB PRODUCTS

Simplex Mk2 Turntable to Well Tempered.
MSRP $1995.00

• “Zero Tolerance” platter bearing
• Servo controlled motor, with vibration controlled mounting
• 0.004” polyester thread belt
• Fully damped tonearm featuring precision made golf ball suspended in silicone fluid for optimum variable damping.
• Easy azimuth adjustment
• Fixed headshell with no fussy setup
• Isolation feet included
• Acrylic platter
• Baltic plywood plinth

www.welltemperedlab.net

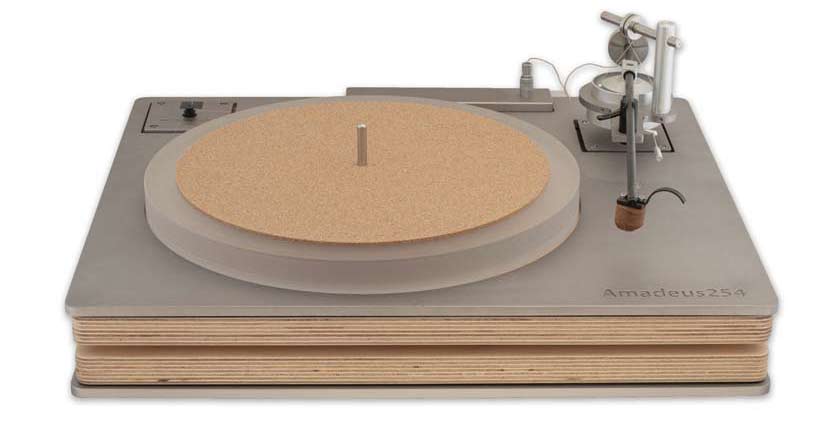

Amadeus 254GT
MSRP $8250.00

• Dual multilayer plywood plinth encapsulated in Aluminium.
• Squash ball isolation between top and bottom plinth layers.
• LTD tonearm.
• CTRL Electronic Speed Control for 33 1/3 to 45 RPM switching.
• Balanced and Single Ended outputs isolated from plinth and motor.
• Well Tempered Lab unique bearing and polyester thread belt for vanishingly low wow and flutter.

www.welltemperedlab.net

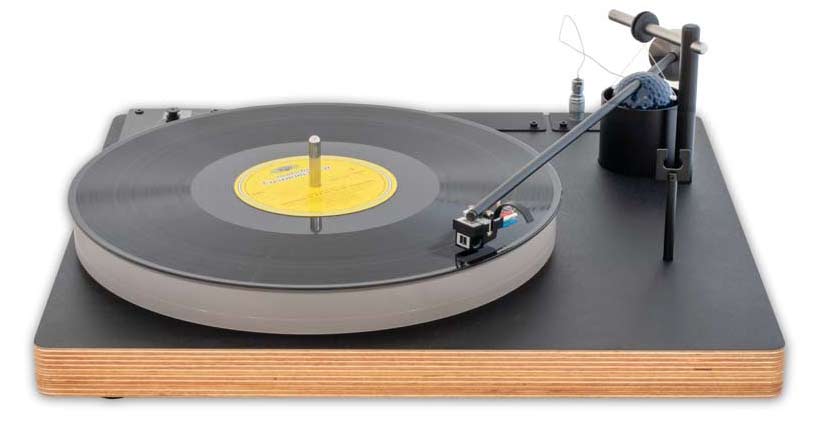

Amadeus Jr with Symmetrex tonarm
MSRP $2950.00

• Dual multilayer plywood plinth encapsulated in Aluminium.
• “Zero Clearance” platter bearing
• Servo controlled motor with vibration controlled mounting
• 0.004” polyester thread belt
• Fully damped 10.5" tonearm suspended in silicone fluid for optimum variable damping
• Easy azimuth adjustment
• Fixed headshell with no fussy setup
• Isolation feet included
• Acrylic platter
• Single layer baltic plywood plinth finished in Black

www.welltemperedlab.net

Versalex Turntable. MSRP $4450.00

A multi-layer “Baltic” plywood plinth finished with a walnut veneer top surface. Baltic plywood is dimensionally stable and has a very natural resonance that also results in a natural “EQ” which is excellent for our purpose.


• Symmetrex tone arm configuration
• “Zero Tolerance” platter bearing
• Servo controlled motor with vibration controlled mounting
• 0.004” polyester thread belt
• Fully damped LTD tonearm featuring golf ball suspended in silicone fluid for optimum variable damping
• Easy azimuth adjustment
• Fixed headshell with no fussy setup
• Isolation feet included
• Acrylic platter
• “Baltic” Plywood plinth finished in real walnut

www.welltemperedlab.net

Well Tempered Lab DPS Power Supply. MSRP $400.00

The DPS features high quality components throughout to completely eradicate spurious noise for truly silent analog playback. Along with the dedicated output for Well Tempered turntables (Amadeus, Simplex & Versalex variants) the DPS also features a pair of additional 12V outputs for running other audiophile components such as phono stages.


• Amadeus, Simplex & Versalex output plus 2 x 12V outputs

www.welltemperedlab.net

Well Tempered Lab Kauri MkII
MSRP $2000.00

• Dual multilayer plywood plinth encapsulated in Aluminium.
• Stylus: Eliptical
• Non-User replaceable stylus
• Cantilever: Boron
• Weight: 7.0g
• Tracking force range 1.8 - 2.2g
• Output voltage: 4.5mV at 5cm/s
• Recommended loading: 100-470 Ohms
• Frequency response: 20-20,000Hz
• Channel separation: Better than 30dB at 1KHz.

www.welltemperedlab.net

Well Tempered Lab TLC
MSRP $550.00

• Dual multilayer plywood plinth encapsulated in Aluminium.
• Stylus: Superfine Eliptical Diamond
• User replaceable stylus
• Cantilever: Hardened low mass, tapered.
• Weight: 6.5g
• Tracking force range 1.5 - 2.0g
• Output voltage: 4.5mV at 5cm/s
• Recommended loading: 47K Ohms
• Frequency response: 20-20,000Hz
• Channel separation: Better than 24dB at 1KHz.

www.welltemperedlab.net
